QUALITY ASSURANCEFor bearing components, quality is not limited to the final inspection. Material selection, manufacturing parameters, dimensional control and inspection at various stages are all important to achieving reliable performance.
At Asiatic Bearing Co., Our Quality Approach Focuses On:
Control of appropriate raw materials for the intended application.
Inspection of critical dimensions according to customer drawings and specifications.
Monitoring of important manufacturing parameters throughout production.
Verification of finished components before dispatch.
Where required, relevant inspection and material documentation can be provided as agreed with the customer.
MATERIAL & METALLURGYBearing performance begins with the right material.
We place strong emphasis on the quality, composition and suitability of bearing materials used in our products based on the customer's design.
For applications involving White Metal bearings, we focus on controlled and specified bearing material compositions rather than relying on inconsistent recycled material sources.
Our objective is to provide customers with consistent, traceable and application-appropriate bearing materials.
BEARING MATERIAL COMPOSITION
| Sr. No. | Bearing Material | Copper Cu % |
Lead Pb % |
Tin Sn % |
Antimony Sb % |
Aluminium Al % |
|---|---|---|---|---|---|---|

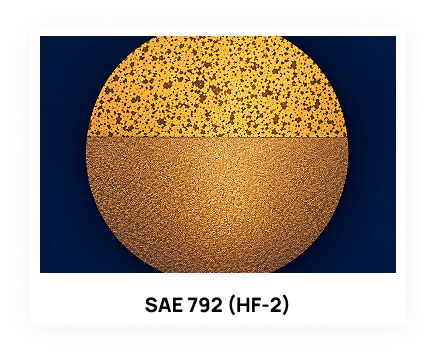

| 1 | SAE 792 (HF-2) | 80 | 10 | 10 | NIL | NIL |

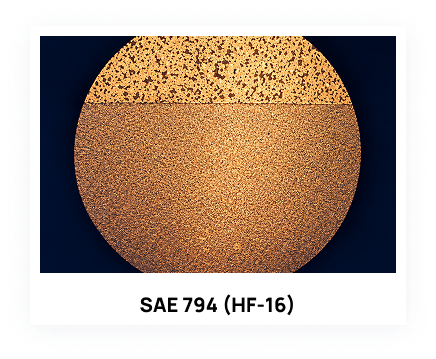

| 2 | SAE 794 (HF-16) | 73 | 23.5 | 3.5 | Nil | Nil |

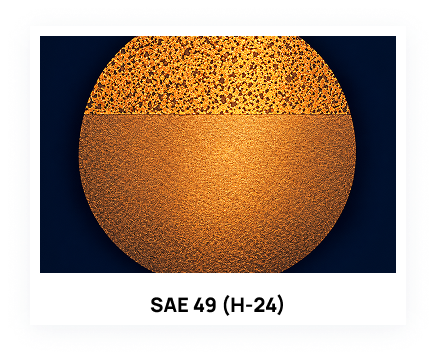

| 3 | SAE 49 (H-24) | 74 | 25 | 1 | Nil | Nil |
| 4 | SAE 12 Tin B.Babbit | 3.5 | 0.5 | 88.5 | 7.5 | Nil |
| 5 | SAE 13 Lead Babbit | NIL | 84 | 6 | 10 | Nil |
| 6 | SAE 783 (At-20) | 1 | NIL | 19 | Nil | 80 |
